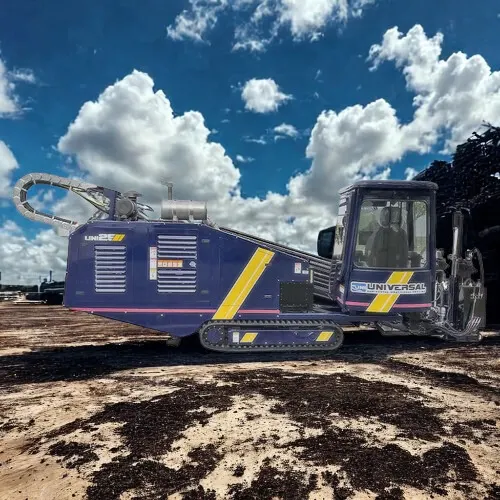

UNI 25 Bottom Feed Directional Drill — Delivers 25,000 lb thrust/pullback and up to 4,000 ft-lb spindle torque, powered by a 132 hp turbo diesel engine—built for high-demand drilling performance. Universal HDD+1
Features an on-board Kerr mud pump with a flow capacity of 72.9 gpm at up to 1,000 psi, ensuring reliable fluid delivery in tough conditions.

UNI 25 Bottom Feed

Parameters USA Metric

Length 221.7 inch 563 cm

Width 73.3 inch 186 cm

Height 97.7 inch 248 cm

Weight (w/o drill rods) 12000 lbs 5443 kg

Parameters	USA	Metric
Thrust	25000 lbs	111.2 kN
Pullback	25000 lbs	111.2 kN
Spindle Torque (Low)	2000 ft-lb	2711.6 Nm
Spindle Torque (High)	4000 ft-lb	5423.3 Nm
Rotation Speed (Low)	180 rpm
Rotation Speed (High)	90 rpm
Operating Angle	18 °

Feature	Available	Notes
Automatic Rod Loader	Yes
Stake-down System	Yes	2 Point Auger System
Strike Alert	Yes
Mud Flow Indicator	Yes
Support Lights	Yes
Auto Rod Greaser	Yes
Air Hammer Ready	Optional
Umbrella	Yes
Locating System	Yes	On-board remote display
Operator's Station	Console
Auto Curve	Optional
Wired Remote	Yes	Maneuver, load, unload and setup your rig
Wireless Remote	Optional	Control essential functions from safe distance
Wire Line Ready	Optional

Parameters	USA	Metric
Make and model	Turbo Diesel
Fuel Type	Diesel
Gross Horsepower	132 hp	98.4 kw
Rated RPM	2500 rpm
EPA Certification	Tier IV

Parameters	USA	Metric
2.375" FS1 (Vermeer® compatible)	10 ft	3.0 m
Basket Capacity	50 rods

Parameters	USA	Metric
Make and model	Kerr KM-3300PT
Flow (*Max)	72.9 gpm	276.3 lpm
Pressure (*Max)	1000 psi	68.9 bar
Fuel Tank	30 gal	113.6 lit
Hydraulic Tank	35 gal	132.5 lit

UNI 25 Bottom Feed

Dimensions and Weight

Engine Specification

Operational Specification

Drill Pipe Specification

Fluid Specification

Features

Parameters	USA	Metric
Length	221.7 inch	563 cm
Width	73.3 inch	186 cm
Height	97.7 inch	248 cm
Weight (w/o drill rods)	12000 lbs	5443 kg
