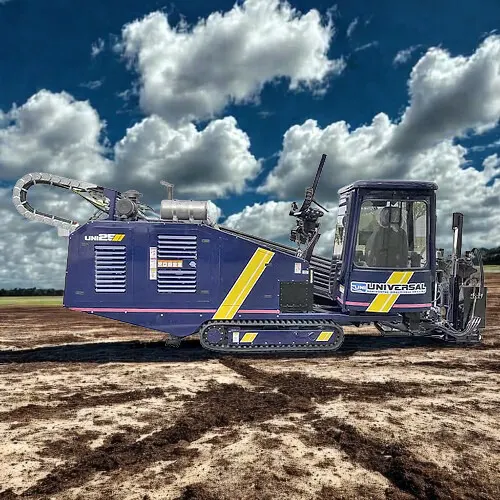

UNI 25 Directional Drill — A compact yet powerful short-range horizontal directional drill equipped with a 132 hp turbo diesel engine, delivering 25,000 lb thrust/pullback and up to 4,000 ft-lb spindle torque for robust drilling under demanding conditions

UNI 25

Parameters USA Metric

Length 215 inch 546 cm

Width 60 inch 152 cm

Height 76 inch 193 cm

Weight (w/o drill rods) 13950 lbs 6328 kg

Parameters	USA	Metric
Thrust	25000 lbs	111.2 kN
Pullback	25000 lbs	111.2 kN
Spindle Torque (Low)	2000 ft-lb	2711.6 Nm
Spindle Torque (High)	4000 ft-lb	5423.3 Nm
Rotation Speed (Low)	180 rpm
Rotation Speed (High)	90 rpm
Operating Angle	18 °

Feature	Available	Notes
Automatic Rod Loader	Yes
Stake-down System	Yes	2 Point Auger System
Strike Alert	Yes
Mud Flow Indicator	Yes
Support Lights	Yes
Auto Rod Greaser	Yes
Air Hammer Ready	Optional
Umbrella	Yes
Locating System	Yes	On-board remote display
Operator's Station	Console
Auto Curve	Optional
Wired Remote	Yes	Maneuver, load, unload and setup your rig
Wireless Remote	Optional	Control essential functions from safe distance
Wire Line Ready	Optional

Parameters	USA	Metric
Make and model	Turbo Diesel
Fuel Type	Diesel
Gross Horsepower	132 hp	98.4 kw
Rated RPM	2500 rpm
EPA Certification	Tier IV

Parameters	USA	Metric
2.375" FS1 (Vermeer® compatible)	10 ft	3.0 m
Basket Capacity	50 rods

Parameters	USA	Metric
Make and model	Kerr KM-3300PT
Flow (*Max)	72.9 gpm	276.3 lpm
Pressure (*Max)	1000 psi	68.9 bar
Fuel Tank	30 gal	113.6 lit
Hydraulic Tank	35 gal	132.5 lit

UNI 25

Dimensions and Weight

Engine Specification

Operational Specification

Drill Pipe Specification

Fluid Specification

Features

Parameters	USA	Metric
Length	215 inch	546 cm
Width	60 inch	152 cm
Height	76 inch	193 cm
Weight (w/o drill rods)	13950 lbs	6328 kg
